Boltless Shelving-Mini Span Shelving

Product Details

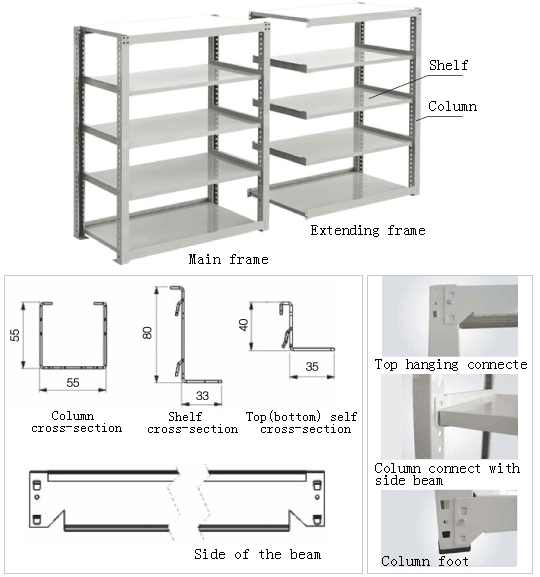

Techinical data for boltless shelving


Boltless Shelving-Mini Span Shelving

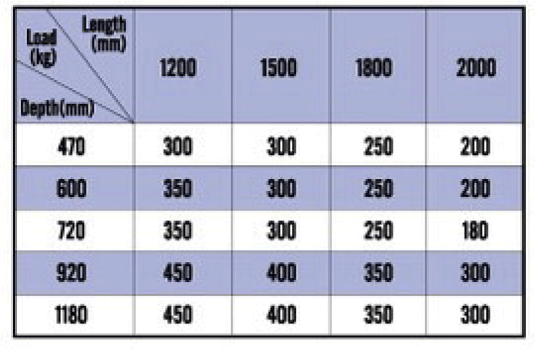

Boltless shelving loading table ( just common size for reference), Any customized size can be manufactured.


Boltless Shelving-Mini Span Shelving

1. Heights from 1800mm to 5000mm

2. Frame widths from 400mm to 1500mm

3. Shelf loading capacity from 150-600kgs per level

4. Maximum load per bay up to 5000kgs

5. Uprights available in Dia 1.5 – 2.0 mm steel

6. Choice of steel (for steel,powder-coating or zinc)


Installation introduction:

Boltless shelving is one of the full plug type shelving system,

it is mainly consists of uprights, beams, steel panels, brackets, baseplates and safety pin, etc.

Because it uses a modular design, the bolt-free lock-in system requires no special tools for installation (only rubber hammer can do it).

It has a elegant appearance, applying to the manual operation.

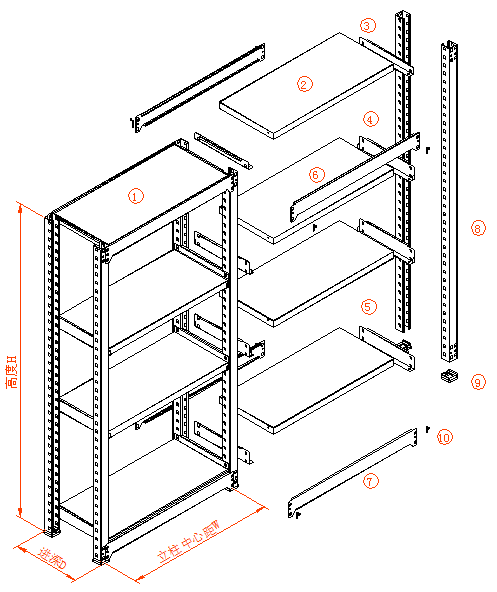

Boltless Shelving-Mini Span Shelving


1. Main unit

2. Attached unit

3. Top bracket

4. Middle bracket

5. Bottom bracket

6. Steel panel

7. Beam

8. Upright

9. Base plate

10. Φ5 “7” Safety pin
